AJA HA5-4K 4K HDMI to 4K SDI Mini-Converter

AJA HA5-4K Overview

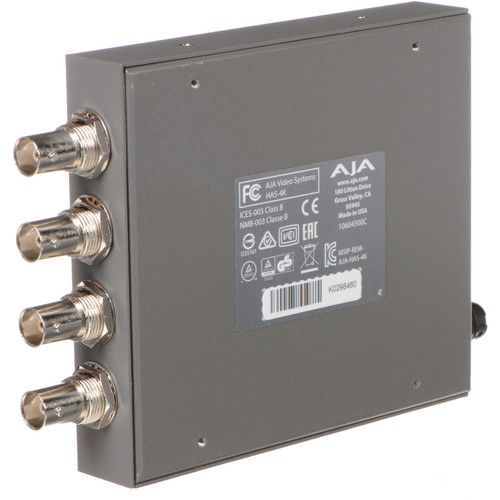

The HA5-4K 4K HDMI to 4K SDI Mini-Converter from AJA provides high-quality conversion of 4K HDMI to 4K SDI via a quad-link 3G-SDI output at frame rates up to 50/60 fps. It also supports SD, HD, and 2K HDMI to SDI conversion as well. The HA5-4K automatically senses incoming HD/2K resolution HDMI signals and convert them to a single 3G-SDI output. Up to eight channels of HDMI embedded audio can be passed through to the SDI output, ensuring your audio is always in sync with the SDI signal. The HA5-Plus features a compact, portable, and rugged design and comes with a universal power supply with international plugs for use around the world.

AJA's free-download MiniConfig control software allows you to control all the parameters of the HA5-4K, and lets you download firmware updates that add new features and functionality. It provides an easy-to-use graphical interface with detailed information about the current input and output formats.

• Convert HDMI 2.0b up to Quad-3G, 4K/UltraHD 60 fps at 4:4:4, 4:2:2, and 4:2:0
• Supports Two Sample Interleave (2SI) and Square Division (Quadrant) output pixel mapping
• EDID HFR Emulation up to UHDp60
• Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
• HDR Metadata VPID Pass-through and optional override
• Simple Frame Rate Conversion (FRC) Fractional or Integer rates
• Embedded audio support 8-channel 24-bit
• Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
• Configure via USB port and supplied AJA Mini-Config software on PC/Mac
• Uses 5-20 VDC power (Universal power supply included)
• Five year warranty
