AJA KONA 1-S Short 3G-SDI 2K Capture & Playback Card
No reviews yet
SKU: CAP-AJA-KONA-2K
✓ In Stock (1 available)
♡ Sign in to save to WishlistKONA 1 is a robust, cost efficient single-channel 3G-SDI 2K/HD 60p I/O card with serial control, reference/LTC and HDR over SDI. KONA 1 features standard application plug-ins and supports capture, monitoring and/or playback with software applications from AJA, Adobe®, Avid®, Apple®, OBS Project, Telestream and more, as well as AJA SDK support. KONA 1 enables simultaneous monitoring during capture (pass-through) and includes: full size SDI ports supporting 3G-SDI formats, embedded 16-channel SDI audio in/out, Genlock with reference/ LTC input and RS-422.
AJA Kona 1 Overview
The AJA KONA 1-S is the short, low-profile version of the KONA 1 capture and playback card. It's designed for OEM developers and allows the user to make an internal connection for an optional, external RS-422 9-pin connector (while the tall version features an integrated 9-pin connector). The card is Mac/Windows/Linux 2-lane PCIe 2.0-compatible and offers single-channel 3G-SDI 2K/HD 60p frame-accurate input/output and a selectable reference/LTC input. It also allows simultaneous monitoring during capture.
Key Features
- Single-channel 3G-SDI 2K/HD 60p capture and playback
- Short, low-profile version for OEM developers (allows user to make internal connection for external RS-422 9-pin connector)
- Selectable HD/SD reference/LTC input
- Simultaneous monitoring during capture
- Mac/Windows/Linux 2-lane PCIe 2.0 compatible

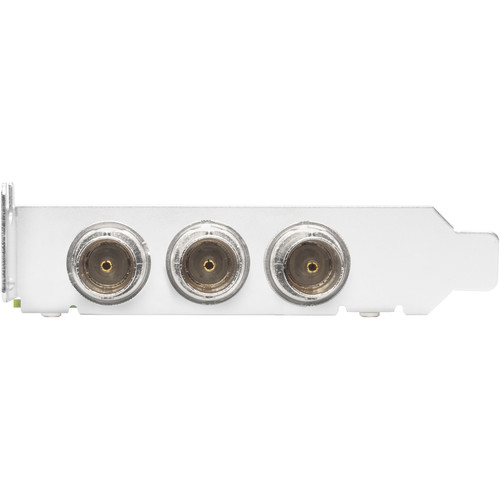

- Full-size BNC ports
- 16-channel SDI embedded audio input/output, 24-bit/48 kHz
- ANC capture and processing
- 8-/10-bit YCbCr and RGB frame buffer formats
- 1-Ch 3G-SDI 2K/HD 60p Capture & Playback
- Short, Low-Profile Version for Developers
- Selectable HD/SD Reference/LTC Input
- Simultaneous Monitoring During Capture
- Mac/Win/Linux 2-Lane PCIe 2.0 Compatible
- 16-Ch Embedded Audio I/O, 24-bit/48 kHz
- Full-Size BNC Ports
- ANC Capture and Processing
- 8-/10-Bit YCbCr and RGB
| Video Formats | (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (2K) 2048 x 1080PsF 23.98, 24, 25 (HD) 1080i 50, 59.94, 60 (HD) 1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 720p 50, 59.94, 60 (SD) 625i 50 (SD) 525i 59.94 |
| Video Input Digital | 3G-SDI, SMPTE 425 RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit 1.5G-SDI, SMPTE 292M Single Link HD-SDI YCbCr 4:2:2 10-bit 270 Mbps SDI, SMPTE 259M-C YCbCr 4:2:2 10-bit, 8-bit *Bit depth support is application dependent. Check with your software manufacturer for compatibility. |
