TSL
TSL PDU14C-20A AC MAINS DISTRIBUTION UNIT 1x 20A PowerCON inlet, 14x IEC outlets
No reviews yet
SKU: MDU-TSL-14C-20A
✓ In Stock (4 available)
♡ Sign in to save to WishlistA range of AC mains power management and distribution units, with advanced remote control and communication functions, depending on model. All models have IEC 10 amp connectors for outputs and PowerCON connectors for input.
TSL PDU14C mains distribution units are fitted with resettable overcurrent protection, therefore they will safely shut down in the event of a catastrophic overload and protect the integrity of the system installation. The 1U, 19-inch rackmount design allows users to integrate into their studio or touring rack system without overuse of space. The rackmount ears are removable for applications where a rack system isn't employed.

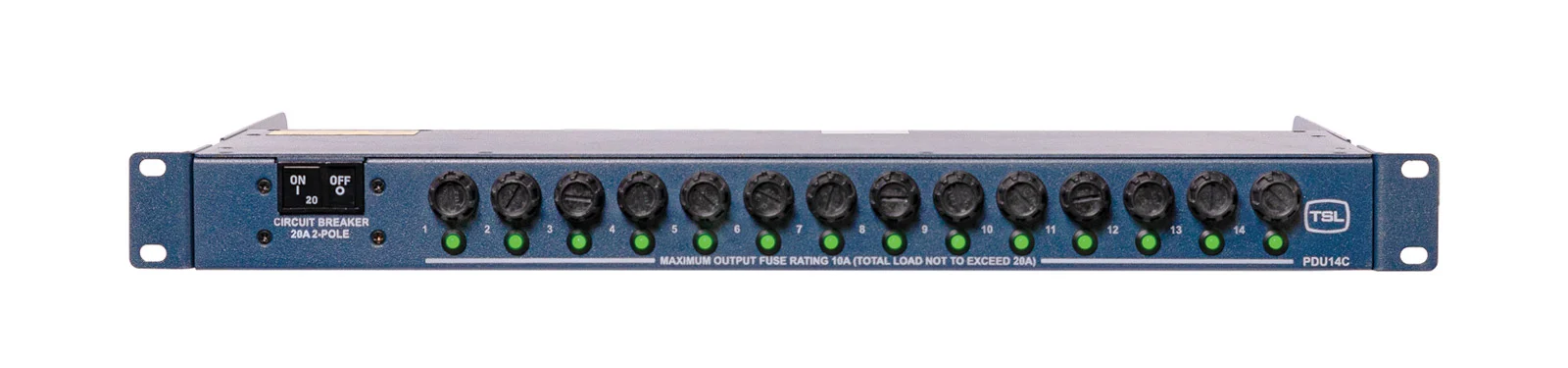

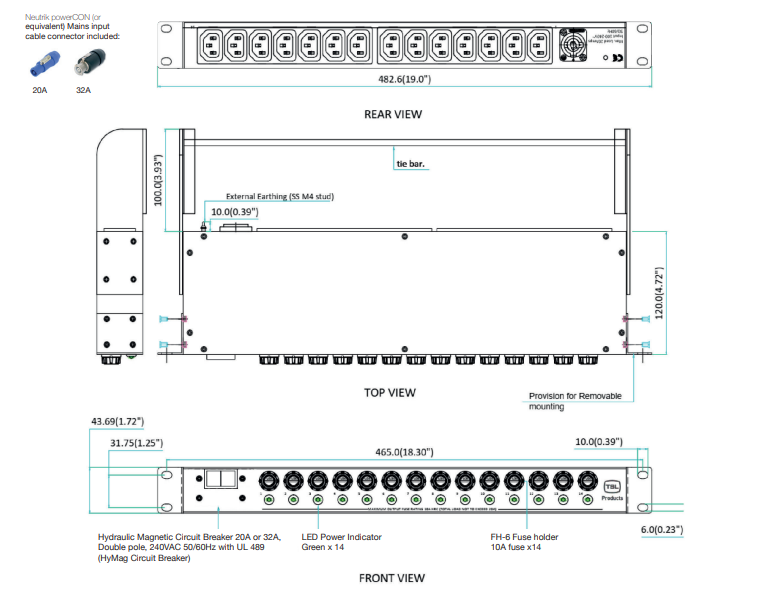

The front facing panel of the MDU features a 2-pole 20A or 32A (version dependant) hydraulic magnetic circuit breaker, along with fourteen 10A, slow blow fuses - one for each outlet; with associated green LEDs to signify power. The rear facing panel houses all I/O connectivity including single source Neutrik PowerCON power input socket and fourteen IEC C13 outlet sockets. A cable tie bar is provided for securing cables.
- 1U 19" Rack mountable
- Single input power source
- Front mounted 14 x 10A fuse
- 14 x LED Power Indicator (Green)
- 20A & 32A versions
- Rugged steel construction
- 14 x 10A IEC13
- UL approved 2-Pole, Non-illuminated Black, 20A or 32A hydraulic magnetic resettable circuit breaker (switch with an overload trip)
- Accessories: Neutrik or equivalent mains input cable connector, 20A or 32A included
- Depth: 120mm (without tie bar), 220mm (with tie bar)
- CE, ROHS
