Blackmagic Design
Mini Converter SDI Distribution
No reviews yet
SKU: CON-BMD-MINI-SDI-D
✓ In Stock (6 available)

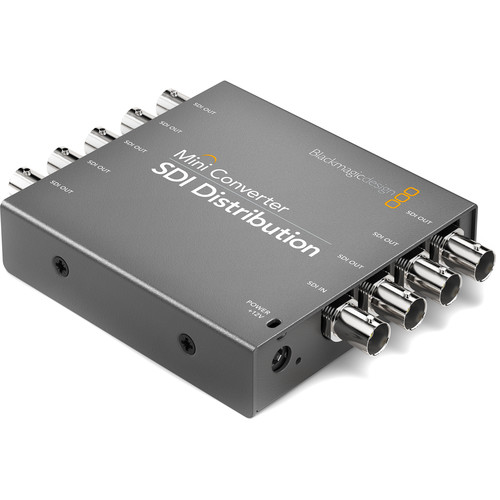

♡ Sign in to save to WishlistThe Blackmagic Design Mini Converter SDI Distribution is a 1x8 distribution amplifier for SD-SDI, HD-SDI, and 3G-SDI signals. The Mini Converter auto-detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI video input. This device represents an affordable way to distribute SDI signals throughout a facility or truck.
The Blackmagic Design Mini Converter SDI Distribution is a 1x8 distribution amplifier for SD-SDI, HD-SDI, and 3G-SDI signals. The Mini Converter auto-detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI video input. This device represents an affordable way to distribute SDI signals throughout a facility or truck.
The Mini Converter SDI Distribution supports all SDI-related transmission features, including embedded audio, ancillary data, and the 3 Gb/s transmission rate that accommodates video formats up to 1080p and 2K progressive. It even handles ASI signals – asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds.
- (1) SDI Input, (8) SDI Outputs
- 3G/HD/SD-SDI Auto-Switching Input
- Re-Clocked Outputs
- Ancillary Data & Embedded Audio
- 1080p & 2K Distribution
- Supports ASI Signals
| Inputs |
1x SDI: Detects & auto-switches between SD-, HD-, and 3G-SDI |
| Outputs |
8x SDI: Automatically match the SDI video input |
| Re-clocking |
Yes |
| Supported Formats |
NTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p, and 2K PsF |
| SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M |
| Video Sampling |
4:2:2 and 4:4:4 |
| Audio Sampling |
Television standard sample rate of 48 kHz and 24-bit |
| Color Precision |
4:2:2 and 4:4:4 |
| Color Space |
YUV and RGB |
| ASI Support |
Yes |
| Power Supply |
12V universal power supply included |
| Power Consumption |
110V: 40mA |
| Voltage Range |
12-30V |
| Package Weight |
1.2 lb |
| Box Dimensions (LxWxH) |
5.6 x 5.4 x 2.6" |
- • Mini Converter SDI Distribution
- • 12V universal power supply with international socket adapters
