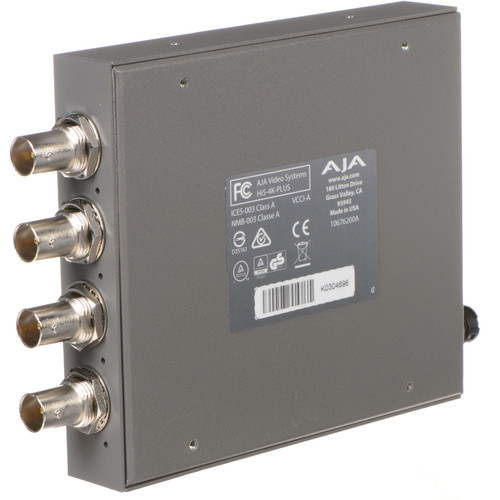

AJA Hi5-4K-Plus Pristine 3G-SDI to HDMI 2.0 Conversion

AJA HI5-4K Overview

Convert SDI to HDMI video with up to 4K60 resolutions with the Hi5-4K-Plus 3G-SDI to HDMI 2.0 Converter from AJA. The Hi5-4K-Plus offers HDR and HLG support, four 3G-SDI inputs, one HDMI 2.0 output, high-resolution embedded audio, app configuration via USB, and a durable, compact form.

The HDMI output offers up to 4K60 monitoring for up to professional 4:4:4 workflows, and it supports HDR 10 and HLG color depth. Embedded audio output supports up to 8-channel audio over HDMI and maintains sync at all times. The Hi5-4K-Plus can be configured and monitored using the AJA Mini-Matrix app from your iOS smartphone, or it can be configured with the Mini-Config software from your macOS or Windows computer using the USB port. A universal power supply is included to power the unit, or you can power it using a separately available D-Tap cable using a high-capacity battery source.

Connectivity

Integrates 4K monitors that utilizes an HDMI 2.0 connection through a single cable with the ones that use four SDI cables to carry the full resolution image

Audio

Up to 8 channels of embedded audio in the incoming SDI signal are carried through seamlessly into the HDMI output, ensuring your audio is always in sync and can be easily played back on the connected monitor

4K and UltraHD

Hi5-4K-Plus allows allowing UltraHD monitors to be used in 4K productions and 4K monitors to be used in 3840 x 2160 resolution

Supports High Frame Rate (HFR) inputs; 4K/UHD signals at 50 or 60 fps can be fed into the converter and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays

HD Support

When you're not working in 4K, Hi5-4K-Plus converter can still be a useful tool for converting HD-SDI to HDMI

A single HD-SDI signal coming into the converter will be sent out as an HD resolution HDMI signal

Universal Power Supply

Ships with a universal power supply unit that includes international plug connections for use around the world

Compact and Portable

The Hi5-4K-Plus mini converter is small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig

A locking power connector can't accidentally pull loose, and an optional D-Tap power cable allows for battery power in remote locations

General

4 x 3G-SDI inputs

Support for 4:2:2/4:4:4 HDMI 2.0 output

HD conversion supported

Embedded audio support

Configure via USB port and supplied MiniConfig software

Uses 5 to 20 VDC power

• Convert Quad-3G-SDI to HDMI 2.0b at up to 4K 60p
• Support for 4:4:4/4:2:2/4:2:0 HDMI 2.0b output
• Supports 12-bit workflows
• HDR signaling metadata pass-through and optional override
• HDR support for HDR10 and HLG
• Embedded audio support 8-channel 24-bit
• Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
• Configure via USB port and supplied Mini-Config software
• Uses 5-20VDC power (Universal power supply included)
• Five year warranty
