AJA

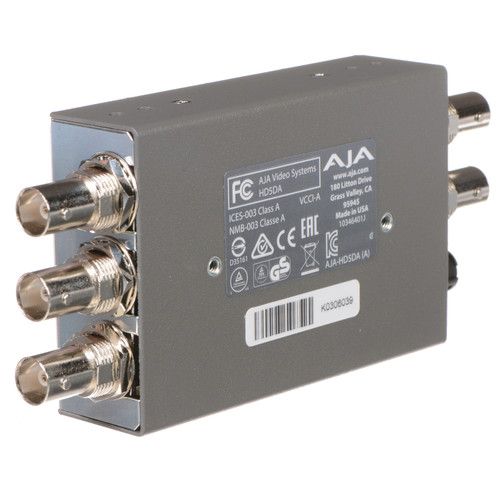

AJA HD5DA HD-SDI/SDI serial digital distribution amplifier
No reviews yet
SKU: DAMP-AJA-HD5DA-SDDA
✓ In Stock (0 available)
♡ Sign in to save to WishlistThe HD5DA is a miniature, low cost, 1x4 HD-SDI/SDI distribution amplifier/repeater. Featuring four separately buffered HD-SDI/SDI outputs, the HD5DA provides automatic input cable equalization to 100 meters and automatically adapts to 143, 177, 270, 360 Mb, and 1.5 Gb.
AJA HD5DA Overview
The AJA HD5DA 1x4 HD/SD-SDI Distribution Amplifier / Repeater with DWP features an auto-sensing input and four separately buffered outputs with automatic cable equalization (up to 410 ft in HD and 984 ft in SD by coax cable). Both input and outputs support embedded audio. A universal power supply comes included.
- Compact HD-SDI/SDI Distribution
- Four Separately Buffered Serial HD-SDI/SDI Outputs
- Auto Equalization
- Acts as a Low Cost Repeater
- Automatic multi-standard
- Miniature Size
| Formats |
1.5 Gb, 143, 177, 270, 360 Mb, Auto Select |
| Inputs |
1 HD-SDI, SDI (SMPTE 292/296), 1x BNC |
| Outputs |
4 HD-SDI, SDI, 4x BNC |
| Return Loss |
>15dB - 270 Mhz (Input and Output) |
| Size (w x d x h) |
5.8" x 2.4" x 1.0" (131 x 61 x 25mm) |
| Power |
5-18 VDC Regulated, 2.5 watts, power supply required, included with purchase |
- • AJA HD5DA 1x4 HD/SD-SDI Distribution Amplifier / Repeater with DWP
- • AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters
- • Limited 5-Year Manufacturer Warranty
