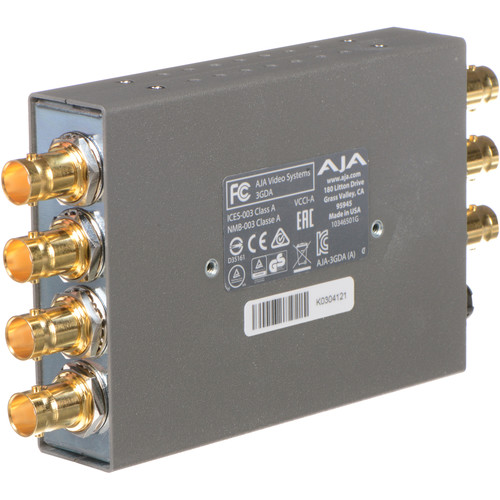

AJA 3GDA 1x6 3G/HD/SD Reclocking Distribution Amplifier
No reviews yet
SKU: DAMP-AJA-3GDA-RDA
✓ In Stock (0 available)
♡ Sign in to save to WishlistThe 3GDA is a miniature, low cost 1x6 3G-SDI reclocking distribution amplifier. Featuring six separately buffered SDI outputs, the 3GDA provides automatic input detection, reclocking and cable equalization.
AJA 3GDA Overview
Split one SDI signal into six with the AJA 3GDA 3G-SDI 1x6 Reclocking Distribution Amplifier. Useful in studios and digital signage applications, this unit features an auto-sensing input and six separately buffered outputs with cable equalization and reclocking, for a clean signal over long cable runs. Both input and outputs support embedded audio. A universal locking power supply comes included.
- Compact SD/HD distribution
- Six separately buffered outputs
- 3G/HD/SD-SDI input, auto sensing
- 3G cable equalization (1694 coax)
- Supports pass-through of SDI metadata, including HDR
- SD: 270mb, 350m, HD: 1.5Gb, 200m
- Passes all ancillary data test
| Video Formats |
100 Mbps - 3 Gbps, format agnostic |
| Video Input Digital |
1 x 3G-SDI BNC, SMPTE-259/292/296/424 |
| Video Output Digital |
6 x 3G-SDI BNC, SMPTE-259/292/296/424 |
| Cable Equalization |
(Belden 1694A coax) |
| Input / Output Return Loss |
>15db, 270 Mb - 3 Gb |
| Reclocking |
2.970 Gbps, 2.967 Gbps, 1.485 Gbps, 1.483 Gbps, 270 Mbps - Auto Select |
| Size (w x d x h) |
5.8" x 3.1 x 1" (147mm x 79mm x 25mm) |
| Weight |
0.7 lb (0.3 kg) |
| Power |
+5-18VDC, regulated, 3 watts, power supply required, included with purchase |
- • AJA 3GDA 3G-SDI 1x6 Reclocking Distribution Amplifier
- • AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters
- • Limited 5-Year Manufacturer Warranty
